| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | RoHS for ink |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | 2 Heads 2 Sensors CMYKW Any Length Printing Detachable Ground Floor UV Printer | L*W*H (main body from ground): | 0.4m*3.34m*0.45m(Width Can Be Tailor-made) |
|---|---|---|---|
| Painting precision: | Adjustable From 720 DPI To 2880DPI | Y Axis Guide: | Limitless |
| Print Heads: | 2 Epson Print Heads | Ink: | 5 Color UV Ink, CMYKW UV Ink, CMYK+WWWW |
| Painting size: | 0.1---2.4m Width (can Be Tailor-made)Length: Limitless | Ink Container Capacity: | 400ml CMYK, 400ml WWWW |
| Printing Speed: | 3--8㎡/h | Applied Floor: | Indoor And Outdoor Parking Space, Basement Floor, Squre Floor, Shopping Mall Floor, Wood Door, Glass Door Etc. |
| Print Head Cleaning: | Auto | Sensors: | 2 Ultrasonic Sensors |
| High Light: | cmykw multifunction flatbed printer,2 sensors multifunction flatbed printer,2 heads small uv flatbed printer |
||
2 heads 2 sensors CMYKW Any length printing detachable Ground Floor UV Printer
We put Floor Printer into market in April 2021, it is quite new project. If You are seeking a project total new and want grasp Your local market and even want to be our Sole Agent in Your city/ province/ country, please feel free contact us ASAP in order to lead Your market.

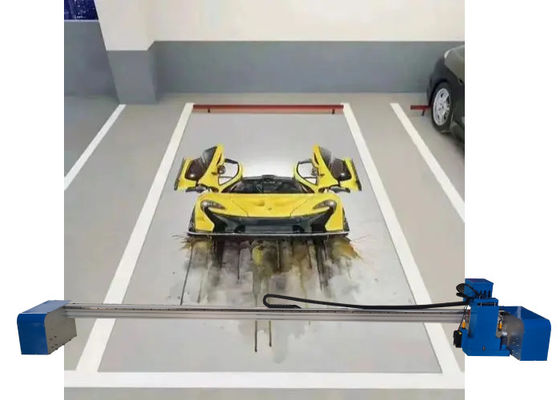

This multifunction flatbed UV printer can print on the ground for ground decoration, can print on parking space, can give Your driving a special , relaxed and fun feeling. You can also print on wedding floor, shopping floor, warehouse floor etc. Furthermore, this printer also can print on wood doors, metals, glass, ceilings etc any material surface.
The ink cost only around 1 usd per square meter, and you can charge 300---600usd for stand garage 10 square meters. And for big trucks garage, You can charge higher.
| ||
| Basic Parameters | New arrival time | April 2021 |
| Data transmission mode | USB 3.0 | |
| Sensor amount | 2 ultrasonic sensors | |
| L*W*H(main body from ground) | 0.4m*3.3m*0.4m | |
| Painting speed | 3---8㎡/h | |
| Ink type | Standard model: special UV ink, | |
| Print head amount | 2 | |
| Ink consumption | 8--12 ml /㎡ | |
| Ink cost of 1㎡ | Less than 1usd | |
| Painting precision | 720---2880dpi adjustable | |
| Painting direction | Horizontal | |
| Painting size | 0.1---2.4m width (can be tailor-made) | |
| Machine configuration | X axis guide | Tailor-made |
| Y axis guide | limitless | |
| Z axis guide | 14cm | |
| Display screen | N | |
| X axis effective stroke | Tailor-made | |
| Y axis effective stroke | limitless | |
| Z axis effective stroke | 10cm | |
| Synchro belt | 1PCS | |
| Drive rack | N | |
| Applied floor | Indoor and outdoor parking space, basement floor, square floor, shopping mall floor, etc | |
| Control configuration | Ink container capacity | CMYK 100ml*4, WWWW,100ml*4 |
| Print head cleaning | Auto | |
| Flash test | Y | |
| Ink jet test | Y | |
| Z-Axis Automation | Y | |
| Level | Y | |
| Laser light | Y | |
| Raster | N | |
| Ultrasonic sensors | 2 | |
Performance | Language switch | English, Chinese |
| Painting mode | Bidirectional | |
| Automatic surface tracking | Laser positioning & ultrasonic sensor, | |
| Drive motor | Multi-axis high-precision serving drive motor, synchronous precise movement, accurate printing | |
| Image processing | AI intelligent image processing | |
| Static zone calibration | Y | |
| Step calibration | Y | |
| Print head buffer | N | |
| Spray distance | 0.5-1cm | |
| Ink supply mode | Negative pressure auto ink supply | |
| Color matching treatment | Auto | |
| Painting media | All planar materials | |
| Integrated voltage stabilizer | Y | |
| Laser positioning | Y | |
| Magnetic induction limit | N | |
| Auto blank skip | Y | |
| Ink heating | N | |
| Power supply | 220V | |
| Power-off continue | N | |
| Photo database | your own photo resource, and we can provide you some theme pictures | |
| Remarks:The above data for reference only, may change due to continuous product/model updating. | ||
ZKMC ground printer is made of high technology, suitable for any material, with strong compatibility. ZKMC wall printer has professional coloring software, which can change color anytime and anywhere, and complete full-color image at one time without additional payment, achieves the best photo printing 3d effect.
