WallNova Printing Technology Co., Ltd.

Factory direct product

Cmykw 5 Colors Uv Ink Multifunction Flatbed Printer For Parking Space Floor Ground Print

Cmykw 5 Colors Uv Ink Multifunction Flatbed Printer For Parking Space Floor Ground Print. from Beijing, China.

Get the latest price

Product specifications

Technical details

Place of Origin
Beijing, China
Brand Name
WallNova
Certification
RoHS for ink

Consolidated technical specifications

Cmykw 5 Colors Uv Ink Multifunction Flatbed Printer For Parking Space Floor Ground Print


The product name writes the ink set as Cmykw, read on this page as CMYKW, and the ink itself is UV throughout; normalising the spelling alters nothing that the listing records. Since the listing records no model number, identification rests on the brand WallNova, the platform reference 14192774 and the configuration schedule issued with the quotation. Three specification values are published for this unit, namely origin, brand and an ink-level RoHS record, and nothing on this page adds a fourth.

FieldRecorded value
Product designationCmykw 5 Colors Uv Ink Multifunction Flatbed Printer For Parking Space Floor Ground Print
Model NumberNot stated in this listing
Brand NameWallNova
Place of OriginBeijing, China
Platform reference14192774
Category placementListed on this platform under multifunction flatbed printer
Designation descriptorsInk-set descriptor, colour-count descriptor, application descriptor, ground descriptor, as stated in the product name
Conformity scopeRoHS for ink. A machine-level CE declaration is not stated in this listing.

Parking Space Floor Ground describes where the machine is used, not what it prints on. Asphalt, sealed concrete, epoxy screed and painted line marking are four surfaces with four different absorption and adhesion behaviours, and the listing chooses none of them. The five-channel wording is a colour-set statement in the same way; it says nothing about white-layer thickness, drop volume or cure dose, none of which appears in the record.

Positioning within the flatbed and ground range

  • A parking bay is a surface that gets walked on and driven over, often under direct sun or in an unheated structure. Abrasion resistance, adhesion under tyre scrub and UV ageing are the properties that decide service life, and the listing provides no weathering or wear test data, so the buyer has to set the test method and the acceptance threshold rather than assume a standard.
  • White carries the colour on this kind of floor. On dark asphalt or a grey epoxy base, the CMYKW set uses white as an underlayer, and both the whiteness and the opacity of that layer decide whether the colours read as intended or turn muddy.
  • The floor build is a system, not a machine setting: primer, colour and top coat have to come from one qualified combination. Mixing brands across the layers is a common route to interlayer adhesion failure, and it usually appears months after an installation that looked correct on day one.

Identification and colour-set boundaries for this unit

What the CMYKW label settles, and the three things it leaves open


A five-channel ink set is a configuration decision before it becomes a print-quality claim. On floor work the extra channel is normally white, and white is the channel that carries hiding power over a dark surface. The table separates what the name fixes from what only the quotation can fix.

Configuration itemRecord basis for this unitBuyer confirmation point
Model and nameplateThe listing records no model number; brand, platform reference and configuration schedule are the only identifiersHave the schedule carry serial number, reference 14192774 and ink set on one page.
Colour channelsCMYKW, five channels, with white named in the set but its position in the head order left undefinedRequest the channel map and state whether white shares a head with another colour.
White ink functionImplied by the W in CMYKW; no opacity figure, wet laydown or cured film thickness is publishedFix a white-layer target in the order and accept it on a dark sample of the buyer's own floor.
Ink conformityRoHS for ink only; no machine-level conformity statement appears anywhere in the listingObtain the machine documentation that applies to the destination market before the order is released.
Working surfaceDescribed only as parking space, floor and ground; neither the material nor its coating is namedName the substrate, its sealer and its age in the site survey, since all three change adhesion.

None of the five lines can be answered from the title alone. Each has a document behind it, whether a schedule, a channel map or a test panel, and the purpose of listing them is to make sure that document is requested rather than assumed.

Floor work where a tyre, not an eye, is the judge

White laydown, cure window and a five-channel ink path


A parking-space print is looked at from standing height, but it is loaded by a tyre at low speed with the weight of a vehicle behind it. That reverses the usual priorities: opacity and film integrity outrank fine detail, and the white base layer, not the four process colours, is where most failures begin.

AreaWhat this machine imposesVerification action
Hiding power over dark asphaltA dark, textured substrate shows through any white layer that is thin or unevenly cured, and process colours printed on top cannot recover the brightness that was lost underneath.Print a white-only step wedge on a slab sample of the actual floor and choose the step that hides the substrate before colour is added.
Cure window and film hardnessAn under-cured UV film stays soft and picks up grit; an over-cured one turns brittle and fractures under point load. Neither condition is visible on the day of printing.Record lamp setting and pass speed at acceptance and repeat the same settings whenever that floor is re-printed.
Five-channel ink deliveryAdding white to CMYK introduces one more line, one more capping position and one more pigment that settles when it stands, so the ink path is the part of the machine that gains most complexity.Ask how the white circuit is kept in suspension between jobs, then put that routine on the operator's daily sheet.
Tyre shear at the print edgeA tyre turning on a printed bay applies shear at the boundary between film and substrate, which is where lifting starts. The listing describes no protective topcoat over the ink.Decide in the order whether a sealer or clear coat is applied over the print, and who applies it.
Ground moisture and outgassingConcrete and asphalt release moisture long after they look dry, and that vapour arrives under the film rather than through it, so a sound-looking print can lift from below.Take a moisture reading on the day of printing at the depth the film will sit, and file it with the job.
Standoff over a coarse surfaceAggregate peaks on a worn slab sit closer to the head than the average surface height, so a standoff that is safe on a smooth floor is not automatically safe on a coarse one.Set head height on the roughest square metre of the actual bay, then confirm the collision guard trips before contact.

Abrasion and adhesion methods are usually drawn from the ASTM and ISO families. Which method applies is settled for the actual floor and the destination market when the order is placed; naming a family here is not a claim that this machine holds a certificate or a wear rating, because the listing publishes neither.

Product description and image documentation

Complete product image set

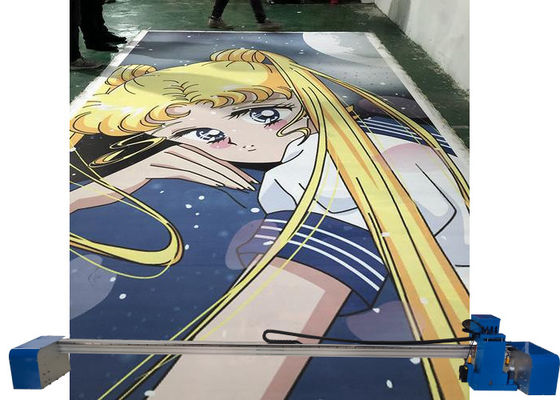

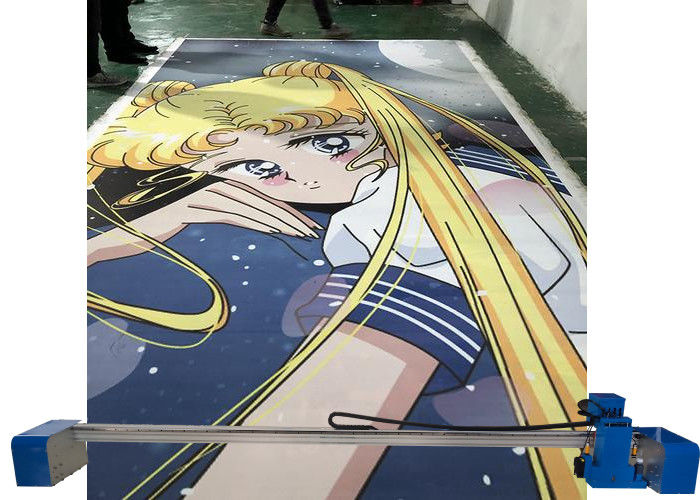

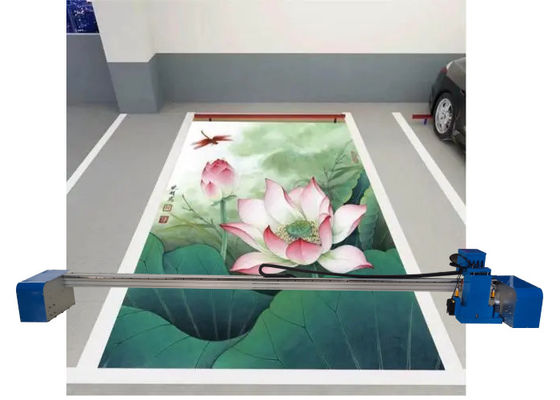

Four views of this unit are held on the platform under reference 14192774 and appear below at their intrinsic aspect ratios. Selecting a frame enlarges it, and the set can then be stepped through with Previous and Next or with the arrow keys.

The four views above are the complete image set associated with reference 14192774 in the platform media library. Stored file names are unchanged, so any frame can be traced back to the listing record it came from.

Independent manufacturer overview

WallNova Printing Technology Co., Ltd.


WallNova is presented on this platform as a digital wall printing technology manufacturer, with product origin recorded as Beijing, China. The identification data below is what the storefront publishes; it characterises the supplier entity and does not describe the ink set or the floor-handling arrangement of this particular machine.

Brand
WallNova
Positioning
Digital Wall Printing Technology
Product origin
Beijing, China
Contact address
Longhua District, Shenzhen, China
Service hours
8:30-17:30 (China time)
Business scope
Direct-to-wall printing systems

Conformity scope and qualification

Qualification aspectScope statement
Machine conformityAssessed for the shipped model and the regulatory requirements of the destination market.
Ink conformityAssessed separately from the machine, against the ink set supplied with the order.
Certificate applicabilityCertification depends on the actual product model and target market.
Documentation controlDocuments are issued against the delivered configuration schedule and the named contracting entity.

A company-level qualification is not a product-level certificate. For this listing the only conformity record is RoHS for ink, so the machine documentation for a given destination has to be asked for rather than inferred from the brand.

Questions that follow from a five-channel floor machine

White ink, tyre wear and the floor underneath


These questions come from the specific combination in the title, five channels, UV ink and floor work, rather than from floor printing in general.

Is white a printable colour here, or only a base layer?

Both readings are possible and the listing does not choose between them. In most five-channel floor work white is laid down as an opaque base and also used as a design colour; the channel map and the job file decide which. Ask the supplier to state where white sits in the head order, because that position determines whether white can be printed in the same pass as the process colours.

How is wear resistance proven for this machine?

It is not proven by the listing. No abrasion class, film thickness or test result is published, and none should be assumed from the word multifunction. The workable route is to agree a method from the ASTM or ISO families with the supplier, print the sample on the buyer's own floor build-up, and keep the result with the order documents.

Does the machine print on any ground surface?

The title names a place, not a material. Asphalt, sealed concrete, epoxy and painted marking behave differently under the same ink and the same cure dose, so substrate and coating have to be named in the site survey before adhesion can be discussed at all.

Why is there no model number in this listing?

The listing records no model number and gives no reason. What matters commercially is that identification then rests on the brand, the platform reference and the configuration schedule, and those three have to appear together on the order, the invoice and the service documents.

What does the certification actually cover?

RoHS for ink, and nothing else in the listing. Certification depends on the actual product model and target market. A machine-level declaration for the destination is therefore a separate document, and it should be requested as one.

What is agreed at acceptance?

A white step wedge and a colour panel printed on the buyer's own slab, the white step that was chosen and the reason for it, the lamp and speed settings used, a moisture reading taken on the day, and head height set on the roughest square metre of the bay.

Closure list before the order and before the floor is printed

Six items that keep a floor job out of dispute


Every line below exists because the listing is silent on the point. Silence that travels into an order becomes an argument after delivery.

CheckWhat this unit requiresRecord to hold
IdentificationBrand, reference 14192774, serial and ink set appear together on one schedule.Signed order specification
Channel mapWhite's position in the head order and any shared-head arrangement are drawn, not described.Configuration drawing
Substrate statementFloor material, its sealer and its age are written into the survey form.Site survey
White-layer targetA chosen step on a dark sample is recorded as the reference for acceptance.Sample slab and photograph
Cure settingsLamp setting and pass speed used at acceptance are logged for later comparison.Commissioning log
Documentation scopeMachine documents for the destination are listed apart from the ink RoHS record.Document pack

A line that cannot be answered from a document is an open question for the quotation, not a detail to settle on site with the machine already unloaded.
