|Place of Origin:||Beijing, China|
|Certification:||RoHS for ink|
|Minimum Order Quantity:||1|
|Packaging Details:||1 plywood box|
|Delivery Time:||5-10 work days|
|Supply Ability:||100 sets/month|
|Name:||Zkmc Year 2021 New Product 2 Printheads 7 Inch Touch Screen 52KG 2880dpi 3d Direct To Wall Printer||Applicable Industries:||Any Flat Materials|
|Ink Type:||Customized Uv Ink||Warranty:||One Year|
|Printhead:||2 Printheads, Micro Piezo Printhead||Base Color:||CMYK+WWWW, 5 Colors|
oem 3d wall printer,
3d wall printer zkmc,
3d automatic vertical wall printer direct wall painting machine

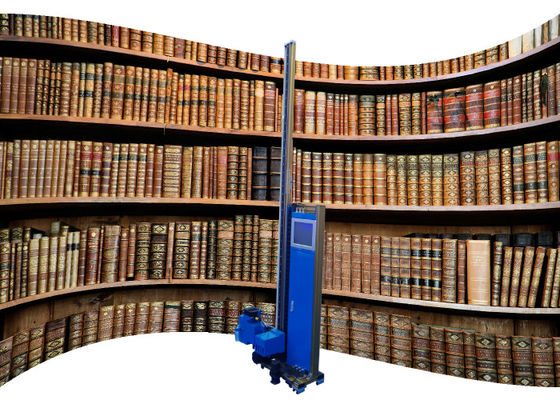

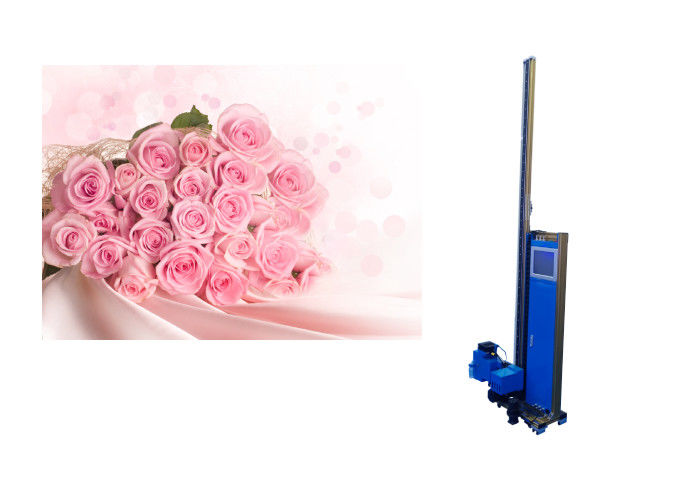

Zkmc Year 2021 New Product 2 Printheads Touch Computer 52KG 2880dpi 3d Direct To Wall Printer
1. Our print inks have an amazing 3D effect and could achieve gold, silver and jade effects. No other additional ink is needed to have these effects.
2. All of our machines are equipped with 2 ultrasonic sensors that automatically sense the flatness of the wall. So, our machine can print high quality picture on slightly curved wall.
3. It takes about 15 minutes for machine assembling. Machine is 52kg. The weight of the 5 pieces (1m/piece) of rail is 50kg. One people could operate the machine easily.
|Data transmission mode||USB|
|L*W*H (main body from ground)||
|Printhead||2 pieces, auto cleaning|
|Ink base color||CMYK+WWWW, use customized uv ink|
|Painting precision||upto 2880DPI|
|Painting speed||Multispeed adjustable, ~1-8m2/h|
|Noise||Standy<20dBA, painting <50dBA|
|10%-70% relative humidity, in non-condensation state|
|Surface tracing||Hyperbolic banner sensors, two-way induction up and down|
|X axis guide||5m rails|
|Z axis guide||14cm|
|Touch computer||Yes, installed in machine|
|X axis effective stroke||470cm|
|Y axis effective stroke||Standard model: 180cm (other models: 200cm, 270cm)|
|Z axis effective stroke||10cm|
|Net picture print height||Standard 1.8m|
|Lead rails weight||10kg/piece*5pcs, total 50kg|
|Applied wall||Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, glass, metal, pvc, ceramic tiles, etc.|
|Remarks||The above data for reference only, may change due to continuous product/model upgrading.|
ZKMC wall inkjet printer is equipped with American ultrasonic sensors for detecting the wall tilt automatically, unique ink heating program which ensure its stable performance in cold weather, original integrated circuit chips, micro-piezoelectric printhead, etc. those improvement make our printer would get the best 3d printing effects. 5 pieces of lead rails which save space, make the transport and reconnect easily.
Q1. Can the printing size be different?
A1. Yes, ZKMC could customize different net picture printing height machine based on demand.
Q2. Can one people operation the machine?
A1. Yes, machine opeation is easy and one people would master it in 2-4 hours. No professional background needed.
Q3. Are you manufacturer?
A3. Yes, our ~900 sqm headquarter is located in industrial development zone, Touzhou, Beijing, China.
