| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | RoHS for ink |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Automatic Glass Mural Printing 2880dpi High Accuracy Wall Printer Robot | Print Dimension: | 1.7m Height, Free Width |
|---|---|---|---|
| Ink Color Matching: | CMYK, Auto Multi Color Matching | Broad Application: | All Flat Materials |
| 2 Ultrasonic Sensor: | Auto Detect The Wall Flatness | Printing Speed: | 1-8 M2/h |
| Highlight: | 2880dpi Wall Printer Robot,Wall Printer Robot Glass Mural Printing |
||

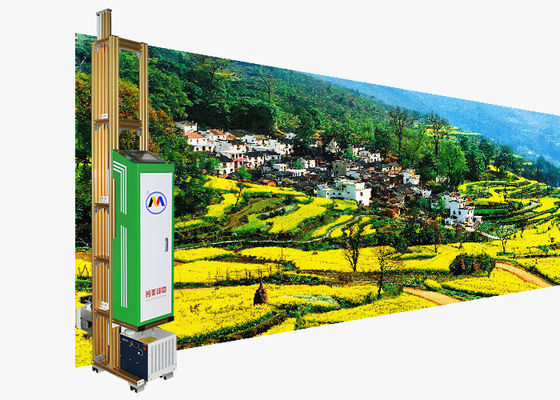

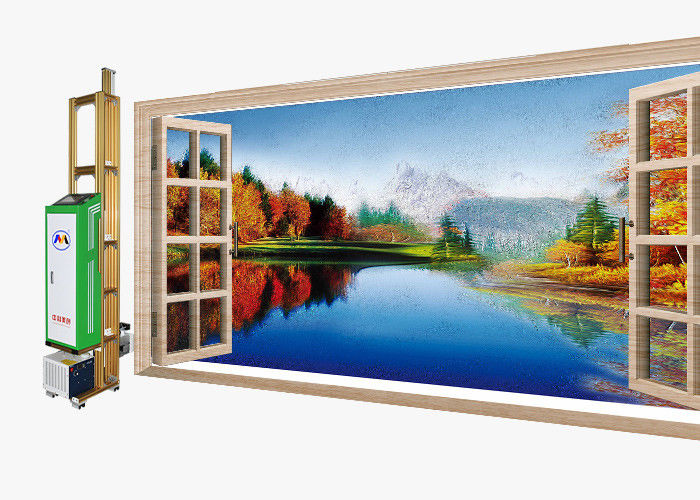

Automatic Glass Mural Printing 2880dpi High Accuracy
Applied walls:
Indoor & outdoor putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, glass, wood, pvc, ceramic tiles, etc.
Supply Ability:Wall Printer Robot
1200 sets/year for ZKMC Wall Printer Robot
Packaging & Delivery:
Packaging Details: 1 plywood packaging, box dimension (L*W*H): 237*81*68cm
Thick plywood case according to International Export Standard for ZKMC Wall Printer Robot.
ZKMC Wall Printer Robot is ready for delivery between 5-10 working days.
Port:
Tianjin Xingang, or any other sea ports or airports in China for shipping ZKMC Wall Printer Robot.
| Ink base color | Dual 4 colors (CMYK, CMYK), customzied special UV ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-8m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| X axis guide | 5m rails |
| Y axis guide | 219cm |
| Z axis guide | 14cm |
| Display screen | 7’’ LCD |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | 170cm |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | 1.7m, unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg*5pcs |
