Name: | ZKMC Laser Positioning Automatic Tracking Bidirectional Wall Mural Printing Machine 3D Digital Inkjet Printer | Ink Color: | CMYK For 1 Printhead (CMYKW 5 Colors For 2-head Machine) |
---|---|---|---|
Applied Materials: | Glass, Wood, Pvc, Tiles, Metal, Etc. | Ink Cost: | 8-12/ml/printhead/m2 Painting |
Printhead Amount: | Standard Model 1-head | Brand: | ZKMC (zhongkemeichuang) |
High Light: | laser positioning vertical wall printing machine,automatic tracking vertical wall printing machine,unlimited width printing vertical wall printer |

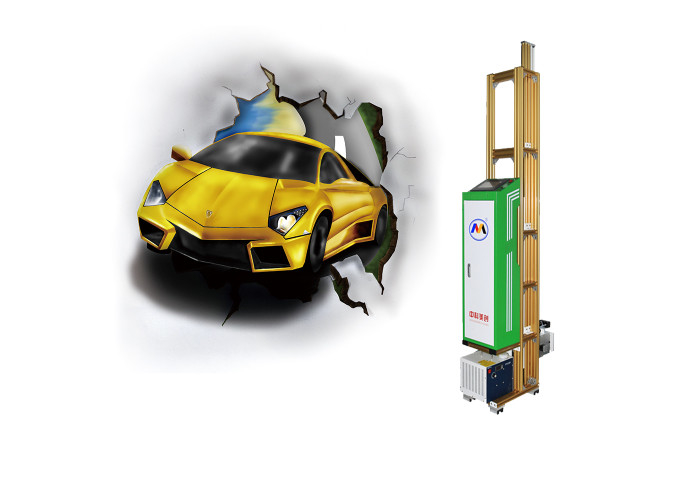

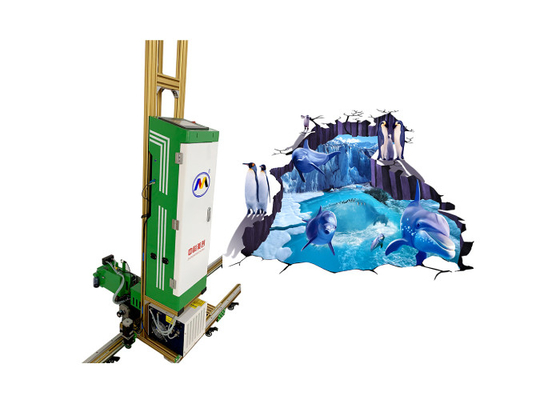

ZKMC Laser Positioning Automatic Tracking Bidirectional wall Mural Printing Machine 3D Digital Inkjet Printer
Zkmc wall printing machine enables 3D picture drawing practical and simple. It's operation panel, LCD display screen and English menu interface. Its z-axis adopts ultrasonic sensor to realize accurate and fast automatic tracking of concave convex surface, so as to make the printing job more worry-free and effective.
Advantages
1. High efficiency
2. Low cost
3. Resistant to peeling
Basic parameters | |
Voltage/power | 90-246V/380W,47-63HZ |
Noise | Standy<20dBA, painting <50dBA |
Storage/Operation | -10℃-35℃(59°F-95°F) |
10%-70% relative humidity, in non-condensation state | |
Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
Machine configuration | |
X axis guide | 5m rails |
Y axis guide | 219cm |
Z axis guide | 14cm |
Display screen | 7’’ LCD |
Spay distance | 0.5-1cm |
X axis effective stroke | 470cm |
Y axis effective stroke | 170cm |
Z axis effective stroke | 10cm |
Synchro belt | 1pc |
Drive rack | 5pcs |
Net picture print height | 1.7m for 1-printhead, unlimited width |
Machine weight | 71kg |
Lead rails weight | 10kg*5pcs |
Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
Control configuration | |
Ink container capacity | 400ml |
Printhead cleaning | Auto |
Pump test | Y |
Z-Axis Automation | Y |
Level | Y |
Ultrasonic sensors | 2pcs |
Performance configuration | |
Language | English |
Painting mode | Bidirectional |
Auto blank skip | Y |
Ink supply mode | Negative pressure auto ink supply |
Color matching treatment | Auto |
Integrated voltage stabilizer | Y |
Ink Heating | Y |
Laser light | Y |
Painting Media | All planar materials |
Software | Professional Printer Maintop Software, ZKMC output software |
Computer system | Windows XP, win7, win8, win10 |
Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
