| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | ROHs for ink |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | 1 plywood box |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100sets/month |
| Name: | High Speed Uv Wall Painting Machine Price Suitable Brick Wall,Wallpaper,Wood,Ceramic | Fan Cooling System: | Yes |
|---|---|---|---|
| Ink Use: | Special Uv Ink, 2-printhead CMYK+WWWW 5 Colors Auto Matching | Surface Tracing: | Ultra Sonic Sensors, Auto Surface Tracing Up And Down |
| Painting Speed: | High Medium Low Multi Speed Adjustable, 1-8㎡/h, | Painting Picture Net Height: | 1.6m (height Customizable), Free Width Painting |
| High Light: | precision wall printing robot,silent wall painting machine,multicolor wall painting machine |
||

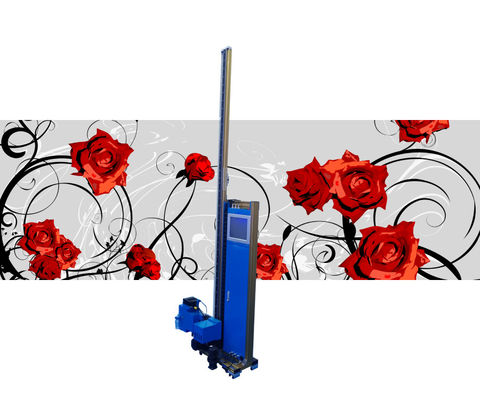

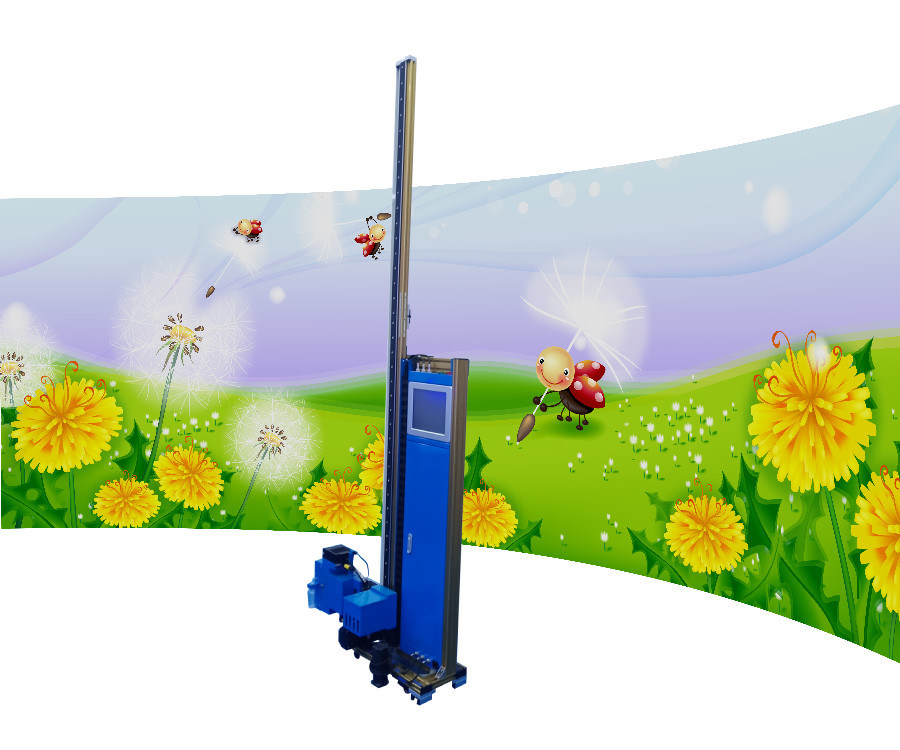

High Speed Uv Wall Painting Machine Price Suitable Brick Wall,Wallpaper,Wood,Ceramic
The mural market is very profitable. What are you still waiting for? Come and Join us now!
This newly developed UV machine has received extensive attention since it came into the market. The foldable vertical guide rail of the machine, the wheels under the machine are easy to move, It's cmykw 5-color with fan cooling system. Equipped with 2 ultrasonic sensors, it can automatically detect the flatness of the wall. Therefore, keep an appropriate distance from the wall and the print head to effectively prevent damage to the print head.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | 80*32*239cm (height customizable) |
| Printhead | Auto cleaning |
| Ink consumption | 15-20ml/m2 |
| Ink base color | CMYK+WWWW for 2-printhead machine (CMYK for 1-printhead uv machine) |
| Painting precision | Upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-8m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rail |
| Z axis guide | 14cm |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pcs |
| Drive rack | 5pcs |
| Net picture print height | 160cm (height customizable) |
| Machine weight | 52kg |
| Lead rails weight | 10kg/piece*5pcs, total 50kg |
| Applied wall | Any flat materials |
| Control configuration | |
| Ink container capacity | 400ml/piece |
| Printhead cleaning | Auto |
| Flasing testing | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language | English |
| Auto blank skip | Y |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special UV ink |
| Surface treatment after printing | N |
| Integrated voltage stabilizer | Y |
| Laser positioning | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous product/model improvement. |
ZKMC vertical wall printer advantages:
Beijing Zhongkemeichuang (ZKMC) Science And Technology Ltd., established in 2013, is a high-tech company specializing in R & D, production, sales and after-sales service of intelligent wall printer machine. In order to meet the market demand, the scale of the brand is becoming larger and larger. We have sole agents in Middle East, Russia and Belarus, have set up offices in Changsha, Guiyang, Jinan. Zhongkemei is the founder of 3d colorful inkjet wall printer. This invention not only saves labor cost, but also breaks the limitation of hand drawing. Break through the technical problems at all levels, perfect response to curved wall, all kinds of weather, and other problems. Many traditional hand-painted masters are very much impressed by our wall printer. It was recommended as a potential investment project by CCTV, and was specially reported by CCTV financial channel. Our products are exported to Romania, Switzerland, Russia, Egypt, Israel, Canada, Sweden, Vietnam, and other countries. ZKMC wall printer quality has been well received by customers.
FAQ
1. What payment method are supported?
Preferred payment method is T/T.
2. What’s your delivery time?
We will arrange the delivery within 5~10 working days after receiving the payment.
3. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.
4. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. We suggest that users order spare parts package for long time maintenance and fast replacement.
5. If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the issue and provide related solution accordingly.
