| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q7PLUS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Zkmc Automatic 2.7 Meters Height Printing 3d Vertical Wall Printer Machine | Applicable Industries: | Food & Beverage Shops, Advertising, Printing Co. |
|---|---|---|---|
| Painting Speed: | Multispeed Adjustable, ~1-7m2/h | 2 Ultrasonic Sensors: | Hyperbolic Banner Sensors, Two-way Induction Up And Down |
| Ink Base Color: | Dual 4 Colors (CMYK, CMYK), Use Special Water Based Ink | L*M*H (main Body from Ground): | Standard Model: 70*31*239cm (the Other Models: 259cm, 329cm) |
| High Light: | Auto Lifting Vertical Operated Wall Printing Machine,Vertical Operated Wall Printing Machine 2.7 Meters |
||

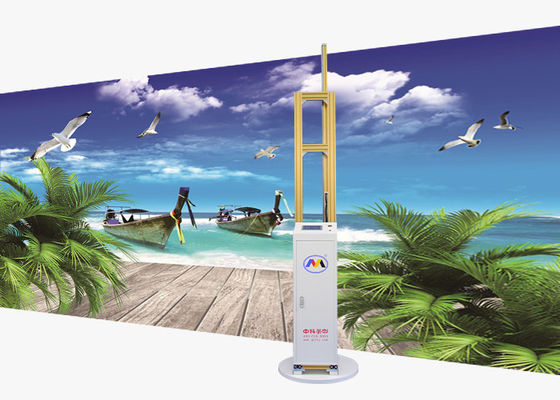

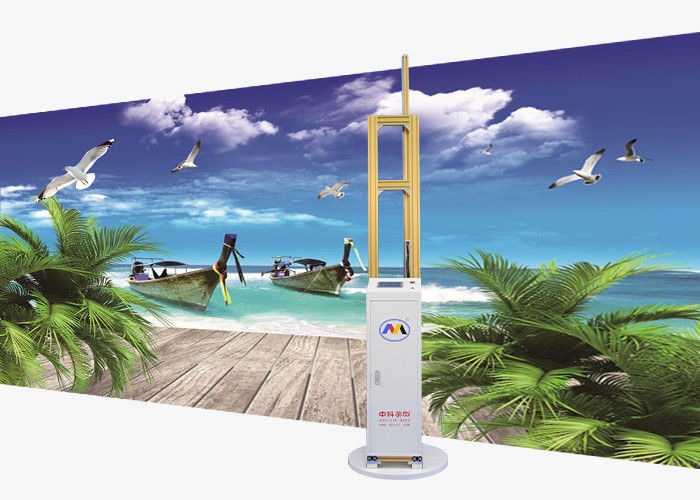

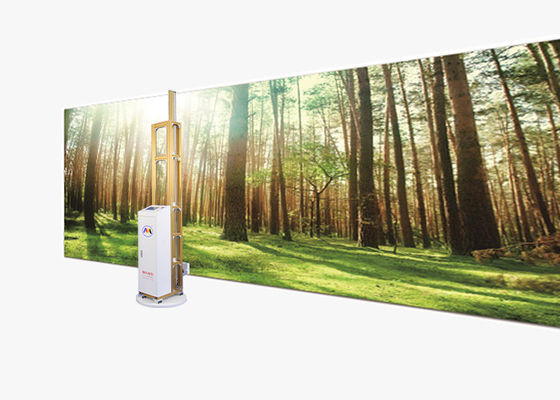

Zkmc Automatic 2.7 Meters Height Printing 3d Vertical Wall Printer Machine
Features
1. Basic colors the printer uses: C (cyan), M (magenta), Y (yellow), K (black), four colors.
2. While printing, no need a flat surface for the wall printer to move along the wall: ZKMC wall printer prints high quality pictures on not totally even surfaces, like brick wall.
3. The process to set the printer up on site: It takes about 10-15 minutes to assemble our wall printer before picture printing.
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| X axis guide | 5m rail |
| Y axis guide | Standard model: 219cm(the other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 4.3’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (the other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg*5pcs |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Language switch | Chinese, English |
| Auto skip blank | N |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Water based ink |
| Surface treatment | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
