Rohs Ink 2880dpi Direct To Wall Printer

Rohs Ink 2880dpi Direct To Wall Printer

  • Rohs Ink 2880dpi Direct To Wall Printer
  • Rohs Ink 2880dpi Direct To Wall Printer
Rohs Ink 2880dpi Direct To Wall Printer
Product Details:
Place of Origin: Beijing, China
Brand Name: Zhongkemeichuang
Certification: CE for machine, RoHS for ink
Model Number: ZK-Q7PLUS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1 plywood box
Delivery Time: 5-10 work days
Payment Terms: T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Name: Utomatic Vertical Rohs Ink 2880dpi Direct To Wall Printer For Office Decoration Applicable Industries: Decoration Industry
Dimensions(l*w*h): 70*31*239cm Printhead: Micro Piezo Printhead
Color: 4 Color(C/M/Y/K) Print Speed: 1-7sqm/h
High Light:

2880dpi Direct To Wall Printer


Rohs Ink Direct To Wall Printer


bidirectional vertical operated wall printing machine

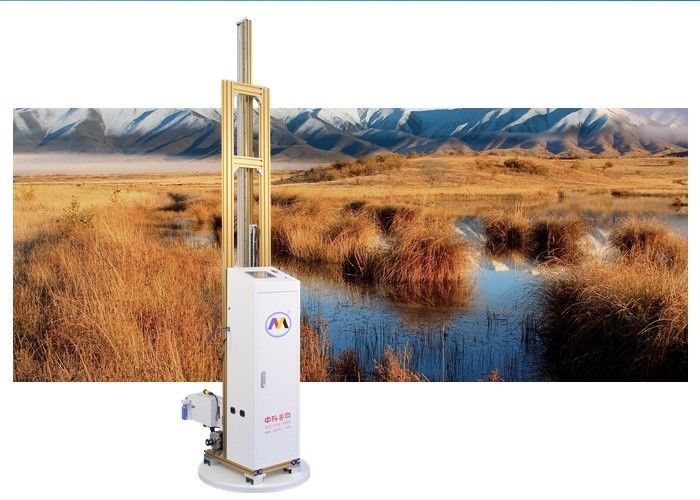

Automatic Vertical Rohs Ink 2880dpi Direct To Wall Printer For Office Decoration



1. Stable, high efficiency, ZK-Q7PLUS with dual-fiber driver, original integrated circuit chips, add integrated voltage regulator and ink heating program, encoded motor, all the improvement make our printer more stable and high efficiency.
2. Train like lead rails, 5pcs *1 meter, save space, transport and reconnect easily.
3. Micro-piezoelectric printhead, the ink jet is much smoothly, quickly, dyeing is more accurate, delicate, bright and clearly.
4. Intelligent lift, adjust the machine height according to the different wall heights.
5. Hight Resolution, printing resolution can reach up to 2880dpi.
6. Automatic printhead cleansing and the uneven wall detecting.
7. CE certificate for wall printer, RoHS for the ink.
8. Warranty, one year warranty (ink and printhead excluded) and lifetime maintenance.


Basic parameters
Data transmission mode USB
L*W*H (main body from ground) Standard model: 70*31*239cm (the other models: 259cm, 329cm)
Printhead Auto cleaning
Ink consumption 8-12ml/m2 (less than USD1/m2)
Ink base color Dual 4 colors (CMYK, CMYK), use special water based ink
Painting precision From 720DPI, upto 2880DPI
Painting direction Vertical
Painting speed Multispeed adjustable, ~1-7m2/h
Voltage/power 90-246V/380W,47-63HZ
Noise Standy<20dBA, painting <50dBA
Storage/Operation -10℃-35℃(59°F-95°F)
10%-70% relative humidity, in non-condensation state
Surface tracing Hyperbolic banner sensors, two-way induction up and down
Machine configuration
X axis guide 5m rails
Y axis guide Standard model: 219cm (other models: 239cm, 309cm)
Z axis guide 15cm
Display screen 4.3’’ LCD, touch screen
Spay distance 0.5-1cm
X axis effective stroke 470cm
Y axis effective stroke Standard model: 180cm (other models: 200cm, 270cm)
Z axis effective stroke 10cm
Synchro belt 1pc
Drive rack 5pcs
Net picture print height Standard 1.8m (other models: 2.0m, 2.7m), unlimited width
Machine weight 62kg
Lead rails weight 10kg/piece*5pcs, total 50kg
Applied wall Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc.
Control configuration
Ink container capacity 400ml
Printhead cleaning Auto
Pump test Y
Stepper motor Y
Level Y
Painting mode Bi-directional
Ultrasonic sensors 2pcs
Performance configuration
Language English
Auto blank skip N
Ink supply mode Negative pressure auto ink supply
Color matching treatment Auto
Ink use Special water based ink
Surface treatment after printing Water based varnish
Integrated voltage stabilizer Y
Ink Heating Y
Software Professional Printer Maintop Software, ZKMC output software
Computer system Windows XP, win7, win8, win10
Packing 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm
Remarks The above data for reference only, may change due to continuous product/model upgrading.


Zhongkemeichuang Science And Technology Ltd., was reported by CCTV 55 minutes program "I Love Invetions",  a pioneer in wall printer research and development. ZKMC direct to wall printer can be directly connected to the laptop, just upload any photos to it, then pictures can be automatically painted on different kinds of walls. It's features of unique, faster, flexible, low cost and 3d effecs resutls. When the direct to wall printer enter the market, they;re highly popular.


Rohs Ink 2880dpi Direct To Wall Printer 0

Rohs Ink 2880dpi Direct To Wall Printer 1Rohs Ink 2880dpi Direct To Wall Printer 2

Rohs Ink 2880dpi Direct To Wall Printer 3Rohs Ink 2880dpi Direct To Wall Printer 4Rohs Ink 2880dpi Direct To Wall Printer 5



1. What payment method are supported?
Preferred payment method is T/T.


2. What’s your delivery time?
We will arrange the delivery within 5~10 working days after receiving the payment.


3. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.


4. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. We suggest that users order spare parts package for long time maintenance and fast replacement.

5. If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the issue and provide related solution accordingly.
