| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Zkmc 2000mm Height Unique Wall Decoration Q8 Automatic 3d Wall Inkjet Printer | Ink Base Color: | Dual 4 Colors (CMYK, CMYK), Use Special Water Based Ink |
|---|---|---|---|
| Ink Consumption: | 8-12ml/m2 (less Than USD1/m2) | Noise: | Standy<20dBA, Painting <50dBA |
| Storage: | 10%-70% Relative Humidity, In Non-condensation State | Hyperbolic Banner Sensors: | Two-way Induction Up And Down Surface Tracing |
| High Light: | 2000mm Wall Design Printing Machine,2000mm Robot Wall Printer,CMYK Printer For Canvas Art |
||

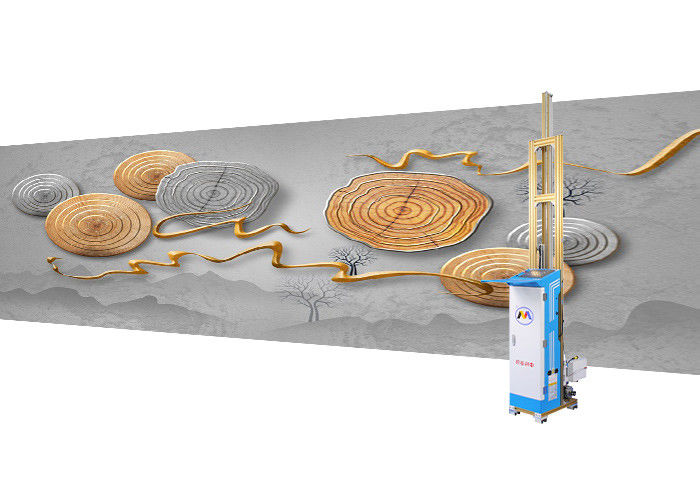

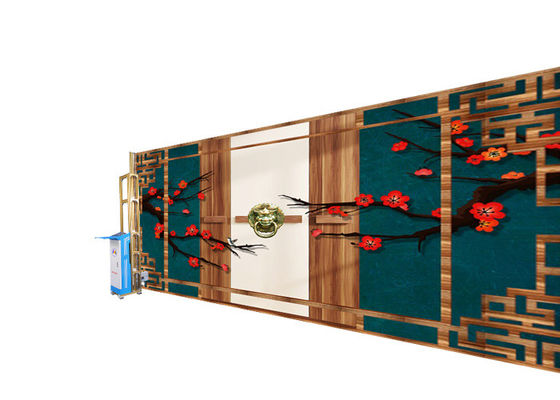

Zkmc 2000mm Height Unique Wall Decoration Q8 Automatic 3d Wall Inkjet Printer
ZKMC 3d Wall Inkjet Printer adopts closed continuous ink supply system to minimize the cost of color painting. The modular printhead is not only convenient for transportation, but also can be replaced immediately in case of problems in the later stage, which not only saves the after-sales cost, but also greatly saves the maintenance time and avoids the delay of construction period.
Brand development history
*July 2013, Beijing headquarters was established
*August 2014, Hunan Office was established, and obtained several independent R & D patents
*June 2015, CCTV "consumer proposition" column strong report of ZKMC Vertical Wall Printer
*End of 2015, Zhejiang Office was established
*June 2017, Guizhou office was established
*April 2018, Jinan Office was established
*August 2018, Zhengzhou office was established
*April 2019, Xuzhou Office was established
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm (other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg/piece*5pcs, total 50kg |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language | English |
| Auto blank skip | Y |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special water based ink |
| Surface treatment after printing | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Packing | 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
Company introduction
Beijing Zhongkemeichuang (ZKMC) Science And Technology Ltd., established in 2013, is a high-tech company specializing in R & D, production, sales and after-sales service of intelligent wall printer machine. In order to meet the market demand, the scale of the brand is becoming larger and larger. We have sole agents in Middle East, Russia and Belarus, have set up offices in Changsha, Guiyang, Jinan. Zhongkemei is the founder of 3d colorful inkjet wall printer. This invention not only saves labor cost, but also breaks the limitation of hand drawing. Break through the technical problems at all levels, perfect response to curved wall, all kinds of weather, and other problems. Many traditional hand-painted masters are very much impressed by our wall printer. It was recommended as a potential investment project by CCTV, and was specially reported by CCTV financial channel. Our products are exported to Romania, Switzerland, Russia, Egypt, Israel, Canada, Sweden, Vietnam, and other countries. ZKMC wall printer quality has been well received by customers.
