| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q7PLUS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | Automatic Printing Speed 7m2/H Machine Height 2390mm 3d Vertical Wall Printer | Applications: | Various Shops |
|---|---|---|---|
| Voltage: | 90-246V | Dimensions(l*w*h): | 70(L)*31(W)*239(H) Cm |
| Net Picture Printing Height: | 1800mm | Warranty: | One Year Warranty(Except Print Head) |
| High Light: | 2390mm 3d Vertical Wall Printing Machine,3d Vertical Wall Printing Machine 7m2/H,usb mural printing machine |
||

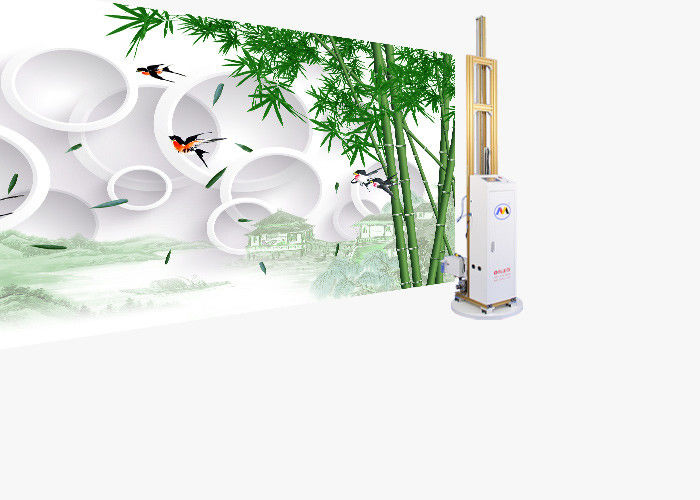

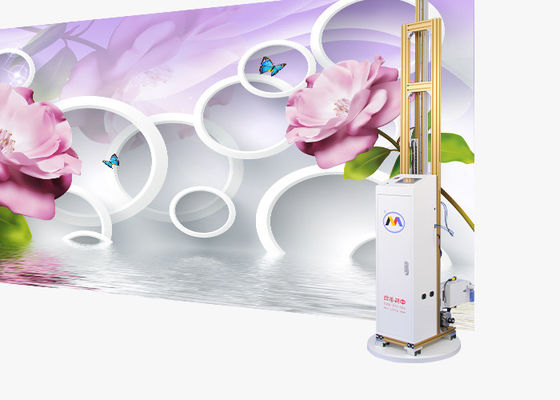

Automatic Printing Speed 7m2/H Machine Height 2390mm 3d Vertical Wall Printer
In order to satisfy more and more customers' demands for bigger picture painting, we developed this vertical wall printer. Its printing height can reach 1800-2700mm based on machine sizes customer ordered. Its width is free, so, no need to move the machine while halfway printing. The machine spray painting surface is bright, clear, and exquisite.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-7m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm (other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 4.3’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (other models: 200cm, 270cm) |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language | English |
| Auto blank skip | N |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special water based ink |
| Surface treatment after printing | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Packing | 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
1. Stable, high efficiency, ZK-Q7PLUS with dual-fiber driver, original integrated circuit chips, add integrated voltage regulator and ink heating program, encoded motor, all those improvement make our printer more stable and high efficiency.
2. Train like lead rails, 5pcs *1 meter.save space, transport and reconnect easily,
3. Micro-piezoelectric printhead, the ink jet is much smoothly, quickly, dyeing is more accurate, delicate, bright and clearly.
4. Intelligent lift platform,adjust the machine height according to the different wall heights.
5. Hight Resolution, Printing resolution can reach upto 2880dpi.
6. Automatical printhead cleansing and the uneven wall detecting.
7. Offering thousands of original printing pictures for every customer.
8. CE certificate for wall printer, Rohs for the ink
9. Warranty, one year warranty and lifetime maintenance, free to replacement parts within warranty period
