| Place of Origin: | Beijing, China |
| Brand Name: | Zhongkemeichuang |
| Certification: | CE for machine, RoHS for ink |
| Model Number: | ZK-Q8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 plywood box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Name: | 62kg High Precision 3d Painting Vertical Operated Wall Printing Machine | Unique Ink Heating System: | Enable Machine Work In Winter Normally |
|---|---|---|---|
| Ultrasonic Sensors: | 2 Pieces For Wall Eveness Tracing | Ink Color: | C M Y K, Dual 4 Colors |
| Printing Accuracy: | 720, 1080, 1440... Up To 2880dpi | Printhead: | 1 Or More Based On Requirements |
| High Light: | LCD 3D Wall Printing Machine,3D Wall Printing Machine Vertical Operated,lcd Automatic Wall Printing Machine |
||

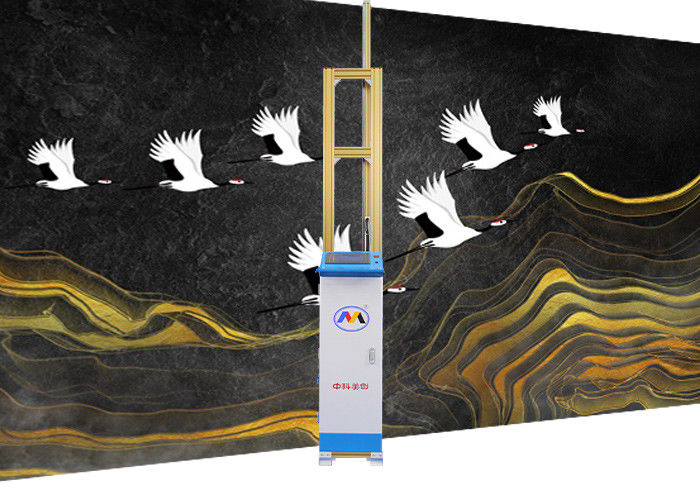

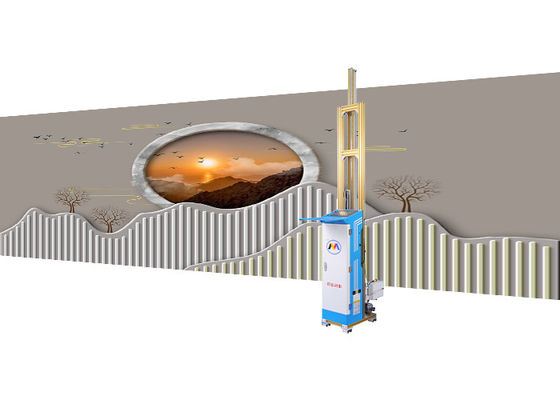

62kg High Precision 3d Painting Vertical Operated Wall Printing Machine
ZKMC Vertical Operated Wall Printing Machine has broad applicatons: such as hotels, garment shops, building material shops, manufacturing plant, machinery repair shops, food & beverage factory, farms, restaurant, home use, retail, food shop, printing shops, construction works , energy & mining, food & beverage shops, advertising company, etc.
ZKMC brings innovation on traditional mural printing!
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-10m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm(the other models: 239cm, 309cm) |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| Y axis effective stroke | Standard model: 180cm (the other models: 200cm, 270cm) |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg*5pcs |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, wooden wall, paper, brick wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language switch | Chinese, English |
| Auto skip blank | Y |
| Intelligent lifting | Support |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Water based ink |
| Surface treatment | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
